Hot water tank 100 liters of drinking water memory

Hot water tank for domestic water 100 liters with 1 WT

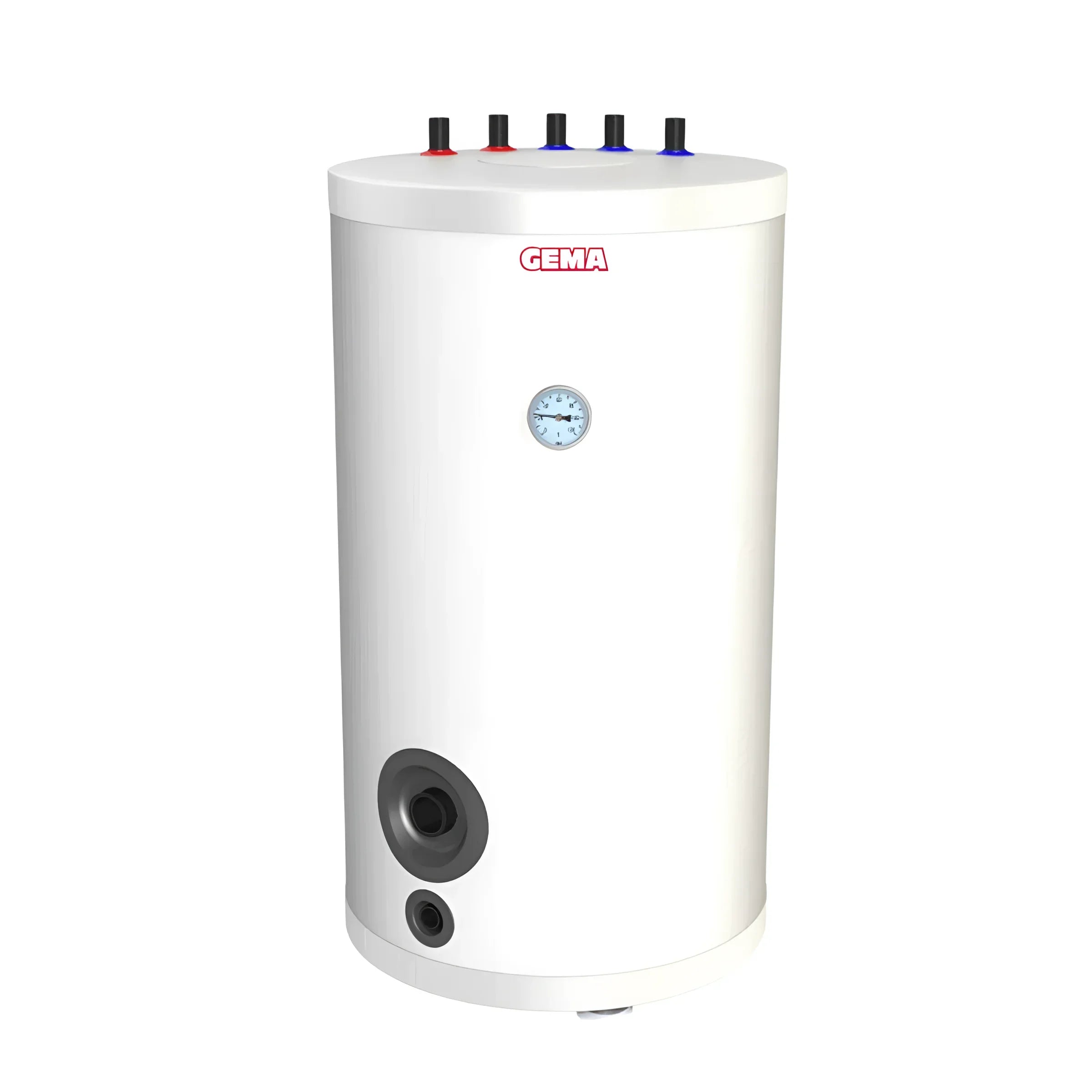

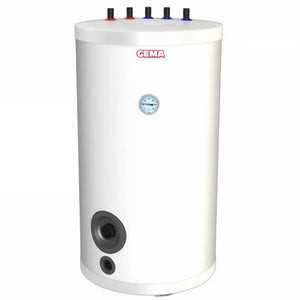

The 100 liter ETWS hot water tank is used for central and safe hot water heating.

The highly efficient heat exchangers heat domestic water inside, using the heat energy from a thermal solar system or from a boiler.

An additional option for heating your hot water is to connect the photovoltaic system with a retrofittable 1 1/2" heating elementwhich is connected to the buffer storage.

For a long service life The drinking water storage tank has corrosion protection in the form of a high-quality enamel coating.

A built-in magnesium anode (protective, sacrificial anode) serves as additional corrosion protection inside the storage tank.

Advantages: Hot water tank 100 liters ETWS

• Very good price-performance ratio
• High hot water comfort for a requirement of 100 liters
• A highly efficient heat exchanger
• With circulation connection
• Connection for a 1 1/2" Electric heating element
• Large magnesium anode for protection against corrosion
• Thermal insulation polyurethane foam (PUR), firmly foamed
• Corrosion protection inside through a high-quality enamel coating
• Can be combined with solid fuel boilers and wood gasification boilers, pellet boilers and combi boilers as well as Solar thermal systems

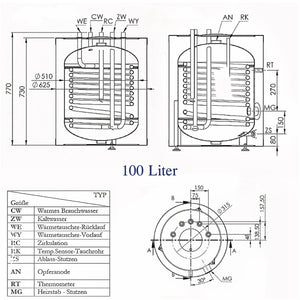

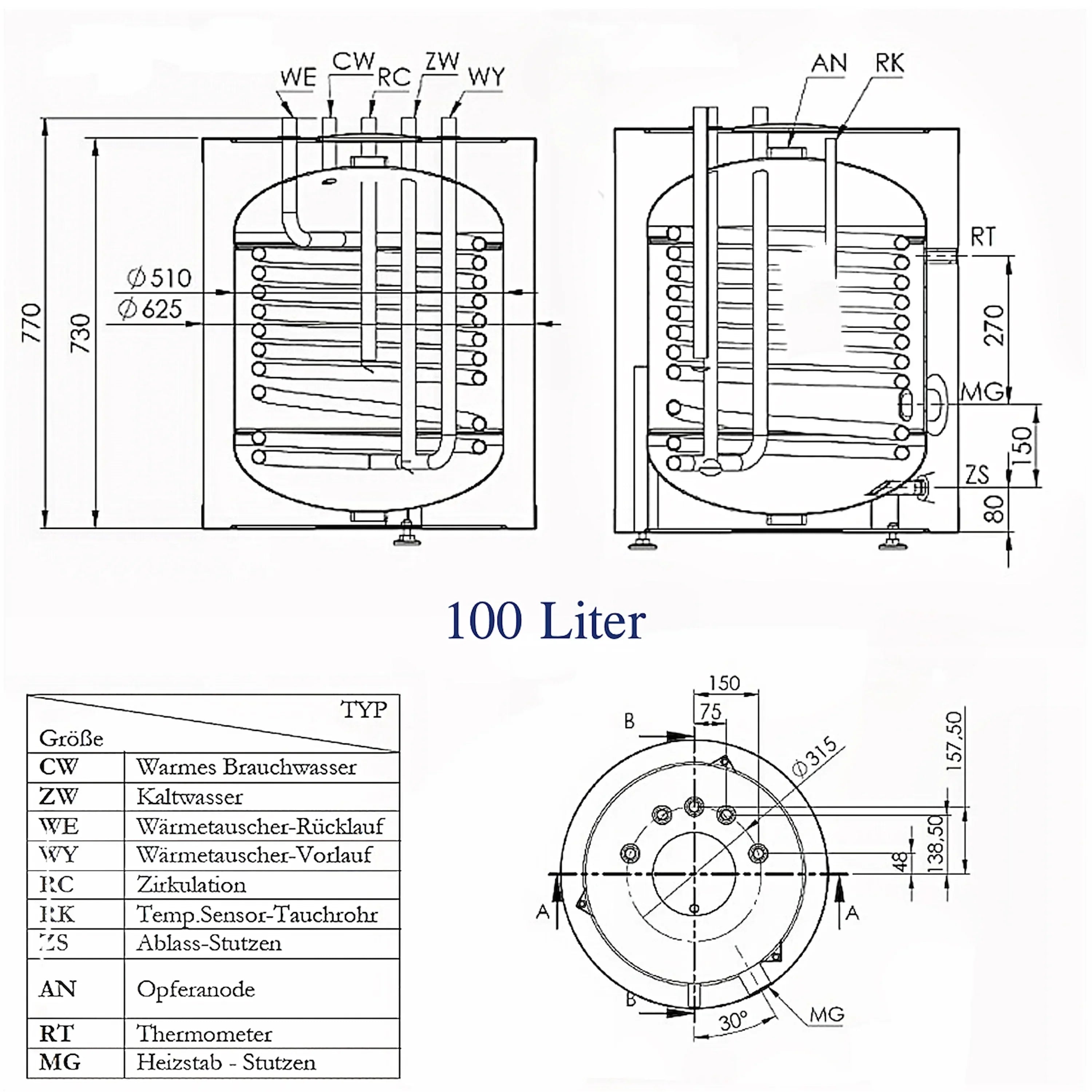

Technical data 100 liter hot water tank:

• Volume: 100 liters
• Heat exchanger surface: 1.2 m²
• Heat exchanger capacity: 5.27 liters
• Connection flow and return heating: 3/4" AG
• Connection flow and return domestic water: 3/4" AG
• Circulation connection: 3/4" AG
• Magnesium anode connection: 1 1/4" IG
• Connection for electric heating: 1 1/2" IG
• Thermal insulation: polyurethane foam (PUR)
• Max. operating temperature storage 95 °C
• Max. operating pressure storage tank/heat exchanger: 6 bar
• Max. operating temperature heat exchanger 100 °C
• Loss: 28 watts
• Dimensions with insulation (diameter x height): 625 x 770 mm
• Weight (empty): 64 kg

Scope of delivery:

• 100 liter hot water tank with 1 heat exchanger including insulation

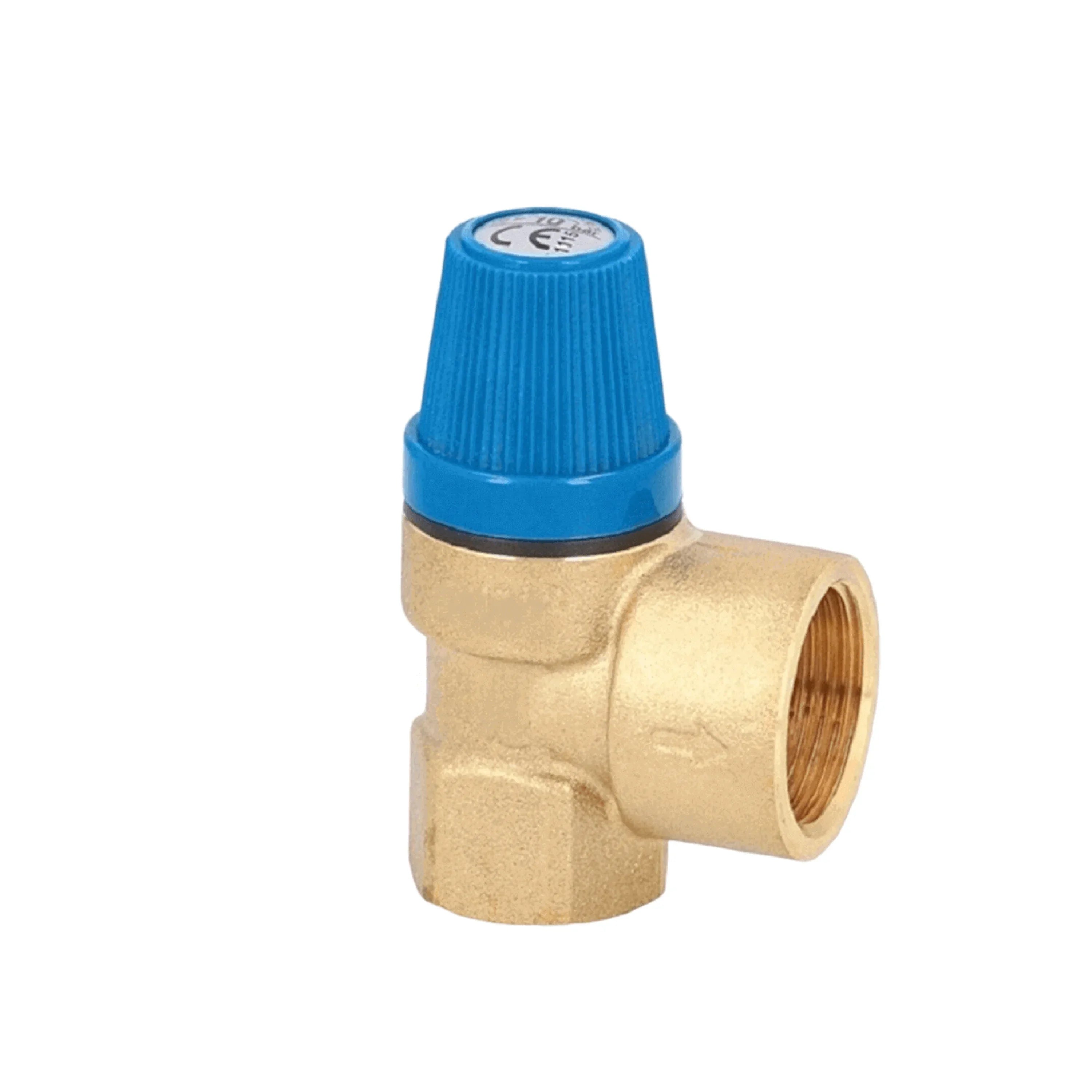

• safety valve
• Operating and maintenance instructions

Download

• Operating instructions
